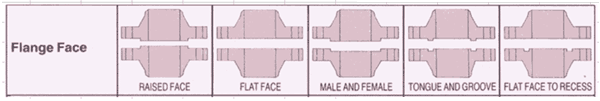

GASKET DIMENSIONS FOR ANSI STANDARD FLANGES
Dimension Table (in mm)
Size
Full Face
Raised Face

Full Face
Raised Face

Full Face
Raised Face
150#
150#
150#
150#
300#
300#
300#
300#
600#
600#
600#
600#
ID
OD
ID
OD
ID
OD
ID
OD
ID
OD
ID
OD
1/2" 15mm
21
88
21
47
21
93
21
53
21
95
21
53
3/4" 20mm
27
98
27
57
27
117
27
66
27
117
27
66
1" 25mm
33
108
33
66
33
123
33
73
33
123
33
73
