Spiral Wound Gaskets - to suit ASME/ANSI B16.47 Series B Flanges





All dimension in millimeters

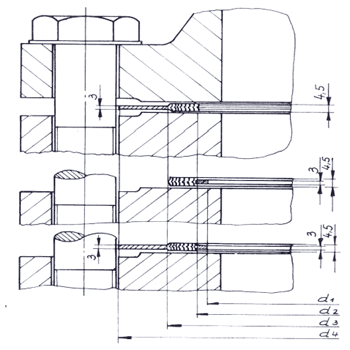

Nominal d1  d2 d3 d4
Pipe size inch 150 300 400 600 900 150 300 400 600 900 150 300 400 600 900 150 300 400 600 900
26    654.0 654.0 654.0 644.6 673.1 673.1 673.1 666.8 663.7 692.2 698.5 711,2 698.5 714.5 749.3 725.4 771.6 746.2 765.3 838.2
28    704.8 704.8 701.8 692.2 723.9 723.9 723.9 714.5 704.8 743.0 749.3 762.0 749.3 755.6 800.1 776.2 825.5 800.1 819.2 901.7
30    755.6 755.6 752.0 752.6 787.4 774.7 774.7 765.3 778.0 806.4 800.1 812.8 806.4 828.6 857.2 827.0 886.0 857.2 879,6 958.8
32    806.4 806.4 800.1 793.8 838.2 825.5 825.5 812.8 831.8 863.6 850.9 863.6 860.6 882.6 914.4 881.1 939.8 911.4 933,4 1016.0
34    857.2 857.2 850.9 850.9 895.4 876.3 876.3 866.9 889.0 920.8 908.0 914.4 911.4 939.6 971.6 935.0 993.9 962.2 997.0 1073.2
36    908.0 908.0 898.6 901.7 927.1 927.1 927.1 917.7 939.8 946.2 958.8 965.2 965.2 990.6 997.0 987.6 1047.8 1022.4 1047.8 1124.0
38    958.8 971.6 952.5 952.5 1009.6 974.6 1009.7 971.6 990.6 1035.0 1009.7 1047.8 1022.4 1041.4 1085.8 1044.7 1098.6 1073.2 1104.9 1200.2
40    1009.6 1022.4 1000.2 1009.6 1060.4 1022.4 1060.4 1025.6 1047.8 1098.6 1063.8 1098.6 1076.4 1098.6 1149.4 1095.5 1149.4 1127.2 1155.7 1251.0
42    1060.4 1054.1 1051.0 1066.8 1111.2 1079.5 1079.5 1076.4 1104.0 1149.4 1114.6 1149.4 1127.2 1155.7 1200.2 1146.3 1200.2 1178.0 1219.2 1301.8
44    1111.2 1124.0 1104.9 1111.2 1155.7 1124.0 1162.0 1130.3 1162.0 1206.5 1165.4 1200.2 1181.1 1212.8 1257.3 1197.1 1251.0 1231.9 1270.0 1368.6
46    1162.0 1178.0 1168.4 1162.0 1219.2 1181.1 1216.2 1193.8 1212.8 1270.0 1224.0 1254.2 1244.6 1263.6 1320.8 1255.8 1317.8 1289.0 1327.2 1435.1
48    1212.8 1200.2 1206.5 1219.2 1270.0 1231.9 1231.9 1244.6 1270.0 1320.8 1270.0 1270.0 1295.4 1320.8 1371.6 1306.6 1368.6 1346.2 1390.6 1485.9
50    1263.6 1267.0 1257.3 1270.0 - 1282.7 1317.8 1295.4 1320.8 - 1325.6 1355.8 1346.2 1371.6 - 1357.4 1419.4 1403.4 1447.8 -
52    1314.4 1317.8 1308.1 1320.8 - 1333.5 1368.6 1346.2 1371.6 - 1376.4 1406.6 1397.0 1422.4 - 1408.2 1470.2 1454.2 1498.6 -
54    1365.2 1346.2 1352.6 1378.0 - 1384.3 1384.3 1403.4 1428.8 - 1422.4 1422.4 1454.2 1479.6 - 1463.8 1530.4 1517.6 1555.8 -
56    1412.7 1428.8 1403.4 1428.8 - 1435.1 1479.6 1454.2 1479.6 - 1470.2 1524.0 1505.0 1530.4 - 1514.6 1593.8 1568.4 1612.9 -
58    1463.5 1484.4 1454.2 1473.2 - 1485.9 1535.2 1505.0 1536.7 - 1522.5 1573.3 1555.8 1587.5 - 1579.6 1655.8 1619.2 1663.7 -
60    1514.3 1505.0 1517.6 1530.4 - 1536.7 1536.7 1568.4 1593.8 - 1573.3 1574.8 1619.2 1644.6 - 1630.4 1706.6 1682.8 1733.6 -
